Product introduction
Under normal temperature and pressure, Yunshi on-board oxygen generator takes air as raw material and large displacement oil-free vacuum pump as power. It makes use of the different penetration rates of various components in the air when they penetrate the membrane. Driven by pressure difference, oxygen in the air preferentially passes through the membrane to get oxygen enriched air. Using this membrane for multiple separation, oxygen rich air containing more than 30% oxygen can be obtained.

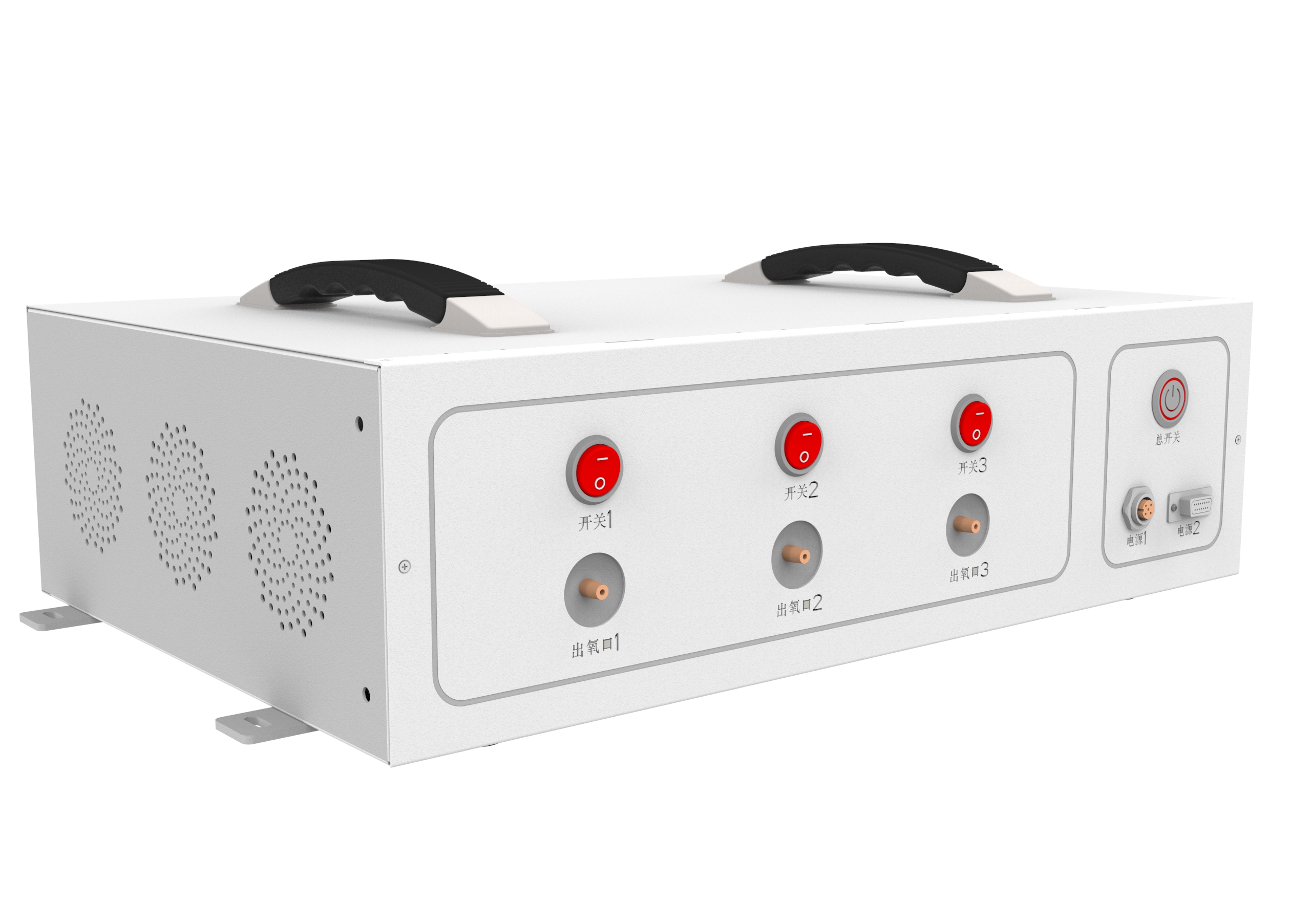

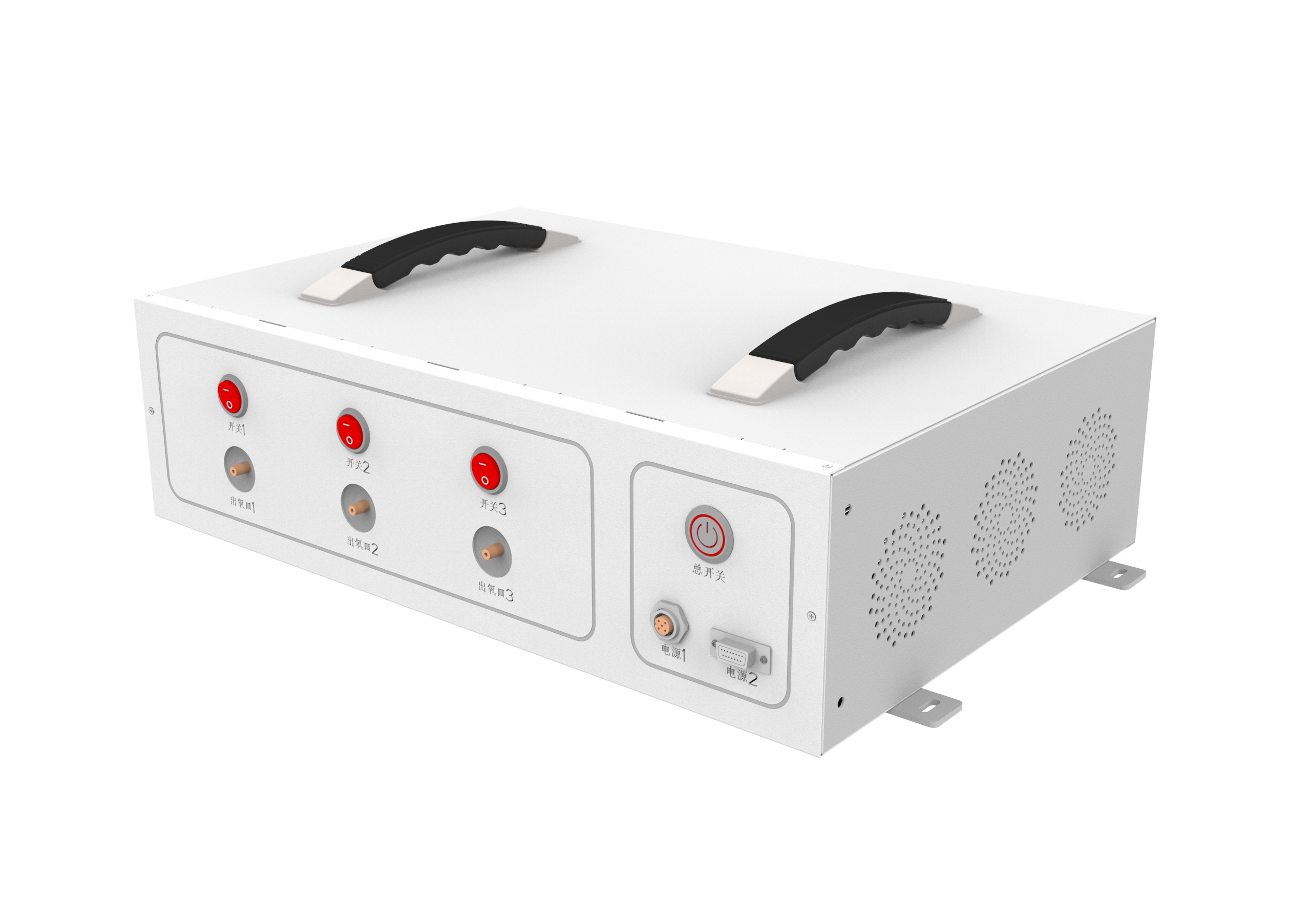

Yunshi on-board oxygen generator has a simple and elegant appearance, and adopts high-strength aluminum alloy profiles; Porous stainless steel oxygen outlet is set to realize multi person oxygen intake and ensure clean and sanitary oxygen outlet; Portable design, can be disassembled and moved at will; Independent switch, combined with intelligent management system, makes human-computer interaction easy and operation simple.
Yunshi on-board oxygen generator is designed for on-board oxygen inhalation, which mainly relieves fatigue, fatigue, headache and other discomfort caused by long-term hypoxia in the brain, enhances immunity, and ensures that passengers can inhale oxygen at any time on the vehicle.
Product features
◆ Multiple people take oxygen. It is designed to produce oxygen through multiple holes, so that multiple people can inhale oxygen at the same time.
◆ Simple operation. Independent switch, one button oxygen making, easy to use.
◆ Wide application scenarios. Car travel and outdoor sports are available.
◆ Easy to move. Portable design, can be disassembled and moved at will.
◆ Applicable to plateau areas. Large flow oxygen generation to ensure sufficient oxygen flow.
Parameter index
1) Boundary dimension: 440 * 300 * 125mm;
2) Rated power: 210W;
3) Oxygen concentration: (30± 3)%;
4) Oxygen flow: (21± 1) L/min;
5) Working voltage: DC12V or DC24V;
6) Weight: 15KG;
7) Working noise:≤ 65dB；
8) Working humidity: ＜ 90% RH;
9) Working temperature: - 40 ℃~+45 ℃;
